#include <views.h>

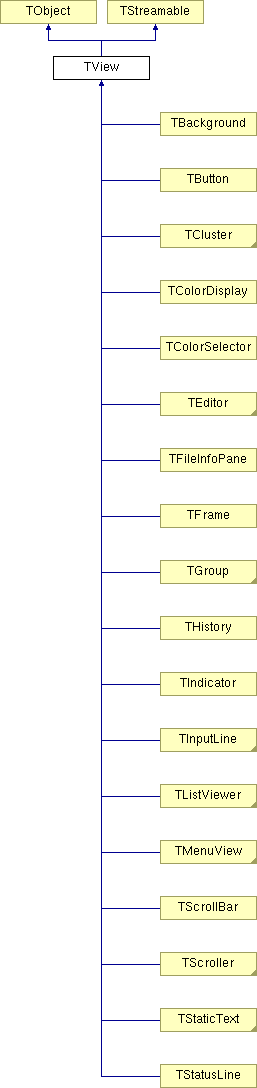

Inheritance diagram for TView::
Public Types | |
| enum | phaseType { phFocused, phPreProcess, phPostProcess } |
| enum | selectMode { normalSelect, enterSelect, leaveSelect } |
Public Methods | |
| TView (const TRect &bounds) | |
| ~TView () | |
| virtual void | sizeLimits (TPoint &min, TPoint &max) |
| TRect | getBounds () |
| TRect | getExtent () |
| TRect | getClipRect () |
| Boolean | mouseInView (TPoint mouse) |
| Boolean | containsMouse (TEvent &event) |
| void | locate (TRect &bounds) |
| virtual void | dragView (TEvent &event, uchar mode, TRect &limits, TPoint minSize, TPoint maxSize) |
| virtual void | calcBounds (TRect &bounds, TPoint delta) |
| virtual void | changeBounds (const TRect &bounds) |
| void | growTo (short x, short y) |
| void | moveTo (short x, short y) |
| void | setBounds (const TRect &bounds) |
| virtual ushort | getHelpCtx () |
| virtual Boolean | valid (ushort command) |
| void | hide () |
| void | show () |
| virtual void | draw () |
| void | drawView () |
| Boolean | exposed () |
| Boolean | focus () |
| void | hideCursor () |
| void | drawHide (TView *lastView) |
| void | drawShow (TView *lastView) |
| void | drawUnderRect (TRect &r, TView *lastView) |
| void | drawUnderView (Boolean doShadow, TView *lastView) |
| virtual ushort | dataSize () |
| virtual void | getData (void *rec) |
| virtual void | setData (void *rec) |
| virtual void | awaken () |
| void | blockCursor () |
| void | normalCursor () |
| virtual void | resetCursor () |
| void | setCursor (int x, int y) |
| void | showCursor () |
| void | drawCursor () |
| void | clearEvent (TEvent &event) |
| Boolean | eventAvail () |
| virtual void | getEvent (TEvent &event) |
| virtual void | handleEvent (TEvent &event) |
| virtual void | putEvent (TEvent &event) |
| virtual void | endModal (ushort command) |
| virtual ushort | execute () |
| ushort | getColor (ushort color) |
| virtual TPalette& | getPalette () const |
| uchar | mapColor (uchar) |
| Boolean | getState (ushort aState) |
| void | select () |
| virtual void | setState (ushort aState, Boolean enable) |
| void | keyEvent (TEvent &event) |
| Boolean | mouseEvent (TEvent &event, ushort mask) |
| TPoint | makeGlobal (TPoint source) |
| TPoint | makeLocal (TPoint source) |
| TView* | nextView () |
| TView* | prevView () |
| TView* | prev () |
| void | makeFirst () |
| void | putInFrontOf (TView *Target) |
| TView* | TopView () |
| void | writeBuf (short x, short y, short w, short h, const void *b) |
| void | writeBuf (short x, short y, short w, short h, const TDrawBuffer &b) |
| void | writeChar (short x, short y, char c, uchar color, short count) |
| void | writeLine (short x, short y, short w, short h, const TDrawBuffer &b) |
| void | writeLine (short x, short y, short w, short h, const void *b) |
| void | writeStr (short x, short y, const char *str, uchar color) |
| virtual void | shutDown () |
Static Public Methods | |
| Boolean | commandEnabled (ushort command) |
| void | disableCommands (TCommandSet &commands) |
| void | enableCommands (TCommandSet &commands) |
| void | disableCommand (ushort command) |
| void | enableCommand (ushort command) |
| void | getCommands (TCommandSet &commands) |
| void | setCommands (TCommandSet &commands) |
| void | setCmdState (TCommandSet &commands, Boolean enable) |
| TStreamable* | build () |
Public Attributes | |
| TView* | next |
| TPoint | size |
| ushort | options |
| ushort | eventMask |
| ushort | state |
| TPoint | origin |
| TPoint | cursor |
| uchar | growMode |
| uchar | dragMode |
| ushort | helpCtx |
| TGroup* | owner |
Static Public Attributes | |
| Boolean | commandSetChanged |
| TCommandSet | curCommandSet |
| Boolean | showMarkers |
| uchar | errorAttr |
| const char* const | name |
Protected Methods | |
| TView (StreamableInit) | |
| virtual void | write (opstream &os) |
| virtual void* | read (ipstream &is) |
Most programs make use of the TView derivatives: TFrame, TScrollBar, TScroller, TListViewer, TGroup, and TWindow objects.
TView objects are rarely instantiated in TVision programs. The TView class exists to provide basic data and functionality for its derived classes. You'll probably never need to construct an instance of TView itself, but most of the common behavior of visible elements in TVision applications comes from TView.
Definition at line 807 of file views.h.
|
|
|
|
|
Used internally by TVision. |
|
|
Creates a TView object with the given `bounds' rectangle. TView constructor calls the TObject constructor and then sets the data members of the new TView to the following values:
Data member Value cursor (0, 0) dragMode dmLimitLoY eventMask evMouseDown | evKeyDown | evCommand growMode 0 helpCtx hcNoContext next 0 options 0 origin (bounds.A.x, bounds.A.y) owner 0 size (bounds.B.x - bounds.A.x, bounds.B.y - bounds.A.y) state sfVisible |
|
|
Hides the view and then, if it has an owner, removes it from the group. |
|
|
Each streamable class needs a "builder" to allocate the correct memory for its objects together with the initialized virtual table pointers. This is achieved by calling this constructor with an argument of type StreamableInit. |
|
|
Returns a pointer to the current modal view, or 0 if none such. |
|
|
The default awaken() does nothing. When a group is loaded from a stream, the last thing the TGroup::read() function does is call the awaken() methods of all subviews, giving those views a chance to initialize themselves once all subviews have loaded. If you create objects that depend on other subviews to initialize themselves after being read from a stream, you can override awaken() to perform that initialization. Reimplemented in TGroup. |
|
|
Sets sfCursorIns in state data member to change the cursor to a solid block. The cursor will only be visible if sfCursorVis is also set (and the view is visible). |
|
|
Called to create an object in certain stream-reading situations. Reimplemented in TBackground, TDeskTop, TColorSelector, TMonoSelector, TColorDisplay, TColorGroupList, TColorItemList, TColorDialog, TDialog, TInputLine, TButton, TCluster, TRadioButtons, TCheckBoxes, TMultiCheckBoxes, TListBox, TStaticText, TParamText, TLabel, THistory, TIndicator, TEditor, TMemo, TFileEditor, TEditWindow, TMenuView, TMenuBar, TMenuBox, TStatusLine, TOutlineViewer, TOutline, TFileInputLine, TSortedListBox, TFileList, TFileInfoPane, TFileDialog, TDirListBox, TChDirDialog, TFrame, TScrollBar, TScroller, TListViewer, TGroup, and TWindow. |
|
|
When a view's owner changes size, the owner repeatedly calls calcBounds() and changeBounds() for all its subviews. calcBounds() must calculate the new bounds of the view given that its owner's size has changed by `delta', and return the new bounds in `bounds'. calcBounds() calculates the new bounds using the flags specified in growMode data member. |
|
|
changeBounds() must change the view's bounds (origin and size data members) to the rectangle given by the `bounds' parameter. Having changed the bounds, changeBounds() must then redraw the view. changeBounds() is called by various TView member functions, but should never be called directly. changeBounds() first calls setBounds(bounds) and then calls drawView(). Reimplemented in TEditor, THelpViewer, TScroller, TListViewer, and TGroup. |
|
|
Standard member function used in handleEvent() to signal that the view has successfully handled the event. Sets `event.what' to evNothing and `event.message.infoPtr' to this. |
|
|
Returns True if the given command is currently enabled; otherwise it returns False. Note that when you change a modal state, you can then disable and enable commands as you wish; when you return to the previous modal state, however, the original command set will be restored. |
|
|
Returns True if a mouse event occurs inside the calling view, otherwise returns False. Returns True if the view is visible and the mouse coordinates (defined in `event.mouse.where') are within this view. The coordinate is defined in the global coordinate system.
|
|
|
dataSize() must be used to return the size of the data read from and written to data records by setData() and getData(). The data record mechanism is typically used only in views that implement controls for dialog boxes. TView::dataSize() returns zero to indicate that no data was transferred. Reimplemented in TColorDialog, TInputLine, TCluster, TMultiCheckBoxes, TListBox, TMemo, TFileList, TChDirDialog, and TGroup. |
|
|
Disables the given command. If the command set is changed by the call, commandSetChanged is set True. |
|
|
Disables the commands specified in the `commands' argument. If the command set is changed by this call, commandSetChanged is set True. |
|
|
Drags the view in the ways specified by the `mode' argument, that is interpreted like the growMode data member. `limits' specifies the rectangle (in the owner's coordinate system) within which the view can be moved, and `min' and `max' specify the minimum and maximum sizes the view can shrink or grow to. The event leading to the dragging operation is needed in `event' to distinguish mouse dragging from use of the cursor keys. |
|
|
Draws the view on the screen. Called whenever the view must draw (display) itself. draw() must cover the entire area of the view. This member function must be overridden appropriately for each derived class. draw() is seldom called directly, since it is more efficient to use drawView(), which draws only views that are exposed; that is, some or all of the view is visible on the screen. If required, draw can call getClipRect() to obtain the rectangle that needs redrawing, and then only draw that area. For complicated views, this can improve performance noticeably. To perform its task, draw() usually uses a TDrawBuffer object. Reimplemented in TBackground, TColorSelector, TMonoSelector, TColorDisplay, TInputLine, TButton, TRadioButtons, TCheckBoxes, TMultiCheckBoxes, TStaticText, TLabel, THistory, TIndicator, TEditor, THelpViewer, TMenuBar, TMenuBox, TStatusLine, TOutlineViewer, TFileInfoPane, TTerminal, TFrame, TScrollBar, TListViewer, and TGroup. |
|
|
If the view is sfFocused, the cursor is reset with a call to resetCursor().
|
|
|
Calls drawCursor() followed by drawUnderView(). The latter redraws all subviews (with shadows if required) until the given `lastView' is reached. |
|
|
Calls drawView(), then if state data member has the sfShadow bit set, drawUnderView() is called to draw the shadow. |
|
|
Calls owner->clip.intersect(r) to set the area that needs drawing. Then, all the subviews from the next view to the given `lastView' are drawn using drawSubViews(). Finally, owner->clip is reset to owner->getExtent().
|
|
|
Calls drawUnderRect(r, lastView), where `r' is the calling view's current bounds. If `doShadow' is True, the view's bounds are first increased by shadowSize (see `TView.cc' for more).
|
|
|
Draws the view on the screen. Calls draw() if exposed() returns True, indicating that the view is exposed (see sfExposed). If exposed() returns False, drawView() does nothing. You should call drawView() (not draw()) whenever you need to redraw a view after making a change that affects its visual appearance. |
|
|
Enables the given command. If the command set is changed by this call, commandSetChanged is set True. |
|
|
Enables all the commands in the `commands' argument. If the command set is changed by this call, commandSetChanged is set True. |
|
|
Calls TopView() to seek the top most modal view. If there is none such (that is, if TopView() returns 0) no further action is taken. If there is a modal view, that view calls endModal(), and so on. The net result is that endModal() terminates the current modal state. The `command' argument is passed to the TGroup::execView() that created the modal state in the first place. Reimplemented in TGroup. |
|
|
Calls getEvent() and returns True if an event is available. Calls putEvent() to set the event as pending.
|
|
|
Is called from TGroup::execView() whenever a view becomes modal. If a view is to allow modal execution, it must override execute() to provide an event loop. The value returned by execute() will be the value returned by TGroup::execView(). The default TView::execute() simply returns cmCancel. |
|
|
Checks if the view is exposed. Returns True if any part of the view is visible on the screen. The view is exposed if:
|
|
|
Tries to grab the focus. The view can grab the focus if:
|
|
|
Returns the current value of size, the bounding rectangle of the view in its owner's coordinate system.
|
|
|
Returns the clipping rectangle: the smallest rectangle which needs to be redrawn in a draw() call. For complicated views, draw() can use getClipRect() to improve performance noticeably. |
|
|
Maps the palette indices in the low and high bytes of `color' into physical character attributes by tracing through the palette of the view and the palettes of all its owners. |
|
|
Returns, in the `commands' argument, the current command set. |
|
|
getData() must copy dataSize() bytes from the view to the data record given by the `rec' pointer. The data record mechanism is typically used only in views that implement controls for dialog boxes.
Reimplemented in TColorDialog, TInputLine, TCluster, TMultiCheckBoxes, TListBox, TMemo, TFileList, TFileDialog, TChDirDialog, and TGroup. |
|
|
Returns the next available event in the `event' argument. Returns evNothing if no event is available. By default, it calls the view's owner's getEvent().
Reimplemented in TProgram, and TApplication. Referenced by TApplication::getEvent().
|
|
|
Returns the extent rectangle of the view.
|
|
|
getHelpCtx() returns the view's help context. The default getHelpCtx() returns the value in the helpCtx data member, or returns hcDragging if the view is being dragged (see sfDragging). |
|
|
getPalette() must return a string representing the view's palette. This can be 0 (empty string) if the view has no palette. getPalette() is called by writeChar() and writeStr() when converting palette indices to physical character attributes. The default return value of 0 causes no color translation to be performed by this view. getPalette() is almost always overridden in derived classes. Reimplemented in TBackground, TProgram, TDialog, TInputLine, TButton, TCluster, TStaticText, TLabel, THistoryViewer, THistoryWindow, THistory, TIndicator, TEditor, TMemo, THelpViewer, THelpWindow, TMenuView, TStatusLine, TOutlineViewer, TFileInfoPane, TFrame, TScrollBar, TScroller, TListViewer, and TWindow. |
|
|
Returns True if the state given in `aState' is set in the data member state. |
|
|
Grows or shrinks the view to the given size using a call to locate(). |
|
|
handleEvent() is the central member function through which all TVision event handling is implemented. The `what' data member of the `event' parameter contains the event class (evXXXX), and the remaining `event' data members further describe the event. To indicate that it has handled an event, handleEvent() should call clearEvent(). handleEvent() is almost always overridden in derived classes. The default TView::handleEvent() handles evMouseDown events as follows: If the view is:
Reimplemented in TDeskTop, TProgram, TColorSelector, TMonoSelector, TColorDisplay, TColorGroupList, TColorItemList, TColorDialog, TDialog, TInputLine, TButton, TCluster, TLabel, THistoryViewer, THistory, TEditor, TMemo, TFileEditor, TEditWindow, THelpViewer, TMenuView, TStatusLine, TOutlineViewer, TFileInputLine, TSortedListBox, TFileInfoPane, TFileDialog, TChDirDialog, TFrame, TScrollBar, TScroller, TListViewer, TGroup, and TWindow. |
|
|
Hides the view by calling setState() to clear the sfVisible flag in the state data member. |
|
|
Hides the cursor by calling setState() to clear the sfCursorVis flag in the state data member. |
|
|
Returns, in the `event' variable, the next evKeyDown event. It waits, ignoring all other events, until a keyboard event becomes available. |
|
|
Changes the bounds of the view to those of the `bounds' argument. The view is redrawn in its new location. locate() calls sizeLimits() to verify that the given bounds are valid, and then calls changeBounds() to change the bounds and redraw the view. |
|
|
Moves the view to the top of its owner's subview list. A call to makeFirst() corresponds to putInFrontOf(owner->first()).
|
|
|
Converts the `source' point coordinates from local (view) to global (screen) and returns the result. |
|
|
Converts the `source' point coordinates from global (screen) to local (view) and returns the result. Useful for converting the event.where data member of an evMouse event from global coordinates to local coordinates. For example: mouseLoc = makeLocal(eventWhere); |
|
|
Maps the given color to an offset into the current palette. mapColor() works by calling getPalette() for each owning group in the chain. It succesively maps the offset in each palette until the ultimate owning palette is reached. If `color' is invalid (for example, out of range) for any of the palettes encountered in the chain, mapColor() returns errorAttr. |
|
|
Sets the next mouse event in the `event' argument. Returns True if this event is in the `mask' argument. Also returns False if an evMouseUp event occurs. This member function lets you track a mouse while its button is down; for example, in drag block-marking operations for text editors. Here's an extract of a handleEvent() routine that tracks the mouse with the view's cursor:
void TMyView::handleEvent(TEvent& event)
{
TView::handleEvent(event);
switch (event.what)
{
case evMouseDown:
do
{
makeLocal(event.where, mouse);
setCursor(mouse.x, mouse.y);
}
while (mouseEvent(event, evmouseMove));
clearEvent(event);
...
}
...
}
|
|
|
Returns True if the `mouse' argument (given in global coordinates) is within the calling view. Call makeGlobal and makeLocal to convert one point between different coordinate systems. |
|
|
Moves the origin to the point (x,y) relative to the owner's view. The view's size is unchanged. |
|
|
Returns a pointer to the next subview in the owner's subview list. A 0 is returned if the calling view is the last one in its owner's list. |
|
|
Clears the sfCursorIns bit in state data member, thereby making the cursor into an underline. If sfCursorVis is set, the new cursor will be displayed. |
|
|
Returns a pointer to the previous subview in the owner's subview list. If the calling view is the first one in its owner's list, prev() returns the last view in the list. Note that prev() treats the list as circular, whereas prevView() treats the list linearly. |
|
|
Returns a pointer to the previous subview in the owner's subview list. A 0 is returned if the calling view is the first one in its owner's list. Note that prev() treats the list as circular, whereas prevView() treats the list linearly. |
|
|
Puts the event given by `event' into the event queue, causing it to be the next event returned by getEvent(). Only one event can be pushed onto the event queue in this fashion. Often used by views to generate command events; for example,
event.what = evCommand; event.command = cmSaveAll; event.infoPtr = 0; putEvent(event); The default TView::putEvent() calls the view's owner's putEvent().
Reimplemented in TProgram. |
|
|
Moves the calling view in front of the `Target' view in the owner's subview list. The call
MyView.putInFrontOf(owner->first); is equivalent to MyView.makeFirst(). This member function works by changing pointers in the subview list.
If the view is selectable (see ofSelectable) and is put in front of all other subviews, then the view becomes selected.
|
|
|
Reads from the input stream `is'. Reimplemented from TStreamable. Reimplemented in TBackground, TColorSelector, TColorDisplay, TColorGroupList, TColorDialog, TInputLine, TButton, TCluster, TMultiCheckBoxes, TListBox, TStaticText, TParamText, TLabel, THistory, TEditor, TMemo, TFileEditor, TEditWindow, TMenuView, TStatusLine, TOutlineViewer, TOutline, TSortedListBox, TFileDialog, TChDirDialog, TScrollBar, TScroller, TListViewer, TGroup, and TWindow. |
|
|
Resets the cursor. Reimplemented in TGroup. |
|
|
Selects the view (see sfSelected). If the view's owner is focused, then the view also becomes focused (see sfFocused).
|
|
|
Sets the bounding rectangle of the view to the value given by the `bounds' parameter. The origin data member is set to `bounds.a', and the size data member is set to the difference between `bounds.b' and `bounds.a'. The setBounds() member function is intended to be called only from within an overridden changeBounds() member function. You should never call setBounds() directly. Reimplemented in TMenuView. |
|
|
Undocumented. |
|
|
Changes the current command set to the given `commands' argument. |
|
|
Moves the hardware cursor to the point (x, y) using view-relative (local) coordinates. (0, 0) is the top-left corner. |
|
|
setData() must copy dataSize() bytes from the data record given by `rec' to the view. The data record mechanism is typically used only in views that implement controls for dialog boxes.
Reimplemented in TColorDialog, TInputLine, TCluster, TRadioButtons, TMultiCheckBoxes, TListBox, TMemo, TFileList, TFileDialog, TChDirDialog, and TGroup. |
|
|
Sets or clears a state flag in the state data member. The `aState' parameter specifies the state flag to modify, and the `enable' parameter specifies whether to turn the flag off (False) or on (True). setState() then carries out any appropriate action to reflect the new state, such as redrawing views that become exposed when the view is hidden (sfVisible), or reprogramming the hardware when the cursor shape is changed (sfCursorVis and sfCursorIns). setState() is sometimes overridden to trigger additional actions that are based on state flags. Another common reason to override setState() is to enable or disable commands that are handled by a particular view. Reimplemented in TInputLine, TButton, TCluster, TIndicator, TEditor, TOutlineViewer, TDirListBox, TFrame, TScroller, TListViewer, TGroup, and TWindow. |
|
|
If the view is sfVisible, nothing happens. Otherwise, show() displays the view by calling setState() to set the sfVisible flag in state data member. |
|
|
Turns on the hardware cursor by setting the sfCursorVis bit in state data member. Note that the cursor is invisible by default. |
|
|
Used internally by TObject::destroy() to ensure correct destruction of derived and related objects. shutDown() is overridden in many classes to ensure the proper setting of related data members when destroy() is called. Reimplemented from TObject. Reimplemented in TDeskTop, TProgram, TLabel, THistory, TEditor, TFileEditor, TFileDialog, TChDirDialog, TScroller, TListViewer, TGroup, and TWindow. |
|
|
Sets, in the `min' and `max' arguments, the minimum and maximum values that size data member may assume. The default TView::sizeLimits returns (0, 0) in `min' and owner->size in `max'. If owner data member is 0, `max.x' and `max.y' are both set to INT_MAX. Reimplemented in TEditWindow, and TWindow. |
|
|
Use this member function to check the validity of a view after it has been constructed or at the point in time when a modal state ends (due to a call to endModal()). A `command' argument of cmValid (zero) indicates that the view should check the result of its constructor: valid(cmValid) should return True if the view was successfully constructed and is now ready to be used, False otherwise. Any other (nonzero) `command' argument indicates that the current modal state (such as a modal dialog box) is about to end with a resulting value of `command'. In this case, valid() should check the validity of the view. It is the responsibility of valid() to alert the user in case the view is invalid. The default TView::valid() simply returns True. Reimplemented in TDialog, TInputLine, TEditor, TFileEditor, TFileDialog, TChDirDialog, and TGroup. |
|
|
Writes to the output stream `os'. Reimplemented from TStreamable. Reimplemented in TBackground, TColorSelector, TColorDisplay, TColorGroupList, TColorDialog, TInputLine, TButton, TCluster, TMultiCheckBoxes, TListBox, TStaticText, TParamText, TLabel, THistory, TEditor, TMemo, TFileEditor, TEditWindow, TMenuView, TStatusLine, TOutlineViewer, TOutline, TFileDialog, TChDirDialog, TScrollBar, TScroller, TListViewer, TGroup, and TWindow. |
|
|
Writes the given buffer to the screen starting at the coordinates (x, y), and filling the region of width `w' and height `h'. Should only be used in draw() member functions.
|
|
|
Writes the given buffer to the screen starting at the coordinates (x, y), and filling the region of width `w' and height `h'. Should only be used in draw() member functions.
Referenced by writeBuf().
|
|
|
Beginning at the point (x, y), writes `count' copies of the character `c' in the color determined by the color'th entry in the current view's palette. Should only be used in draw() functions. |
|
|
Writes the line contained in the buffer `b' to the screen, beginning at the point (x, y) within the rectangle defined by the width `w' and the height `h'. If `h' is greater than 1, the line will be repeated `h' times. Should only be used in draw() member functions.
|
|
|
Writes the line contained in the buffer `b' to the screen, beginning at the point (x, y) within the rectangle defined by the width `w' and the height `h'. If `h' is greater than 1, the line will be repeated `h' times. Should only be used in draw() member functions.
|
|
|
Writes the string `str' with the color attributes of the color'th entry in the view's palette, beginning at the point (x, y). Should only be used in draw() member functions. |
|
|
Set to True whenever the view's command set is changed via an enable or disable command call. |
|
|
Holds the set of commands currently enabled for this view. Initially, the following commands are disabled: cmZoom, cmClose, cmResize, cmNext, cmPrev. This data member is constantly monitored by handleEvent() to determine which of the received command events needs to be serviced. curCommandSet should not be altered directly: use the appropriate set, enable, or disable calls. |
|
|
The location of the hardware cursor within the view. The cursor is visible only if the view is focused (sfFocused) and the cursor turned on (sfCursorVis).
|
|
|
Determines how the view should behave when mouse-dragged. The dragMode bits are defined as follows:
Constant Value Meaning dmDragMove 0x01 Allow the view to move dmDragGrow 0x02 Allow the view to change size dmLimitLoX 0x10 The view's left-hand side cannot move outside limits dmLimitLoY 0x20 The view's top side cannot move outside limits dmLimitHiX 0x40 The view's right-hand side cannot move outside limits dmLimitHiY 0x80 The view's bottom side cannot move outside limits dmLimitAll 0xF0 No part of the view can move outside limits By default, the TView constructor sets the dragMode data member to dmLimitLoY. Currently, these constants and dragMode are only used to compose the `mode' argument of TView::dragView() calls when a view is moved or resized. |
|
|
Attribute used to signal an invalid palette selection. For example, mapColor() returns errorAttr if it is called with an invalid color argument. By default, errorAttr is set to 0xCF, which shows as flashing red on white. |
|
|
eventMask is a bit mask that determines which event classes will be recognized by the view. The default eventMask enables evMouseDown, evKeyDown, and evCommand. Assigning 0xFFFF to eventMask causes the view to react to all event classes; conversely, a value of zero causes the view to not react to any events. |
|
|
Determines how the view will grow when its owner view is resized. To growMode is assigned one or more of the following growMode masks:
Constant Value Meaning gfGrowLoX 0x01 If set, the left-hand side of the view will maintain a constant distance from its owner's right-hand side. If not set, the movement indicated won't occur. gfGrowLoY 0x02 If set, the top of the view will maintain a constant distance from the bottom of its owner. gfGrowHiX 0x04 If set, the right-hand side of the view will maintain a constant distance from its owner's right side. gfGrowHiY 0x08 If set, the bottom of the view will maintain a constant distance from the bottom of its owner's. gfGrowRel 0x10 For use with TWindow objects that are in the desktop. The view will change size relative to the owner's size, maintaining that relative size with respect to the owner even when screen is resized. gfGrowAll 0x0F If set, the view will move with the lower-right corner of its owner. Note that LoX = left side; LoY = top side; HiX = right side and HiY = bottom side. Example: growMode = gfGrowLoX | gfGrowLoY; |
|
|
The help context of the view. When the view is focused, this data member will represent the help context of the application, unless the context number is hcNoContext, in which case there is no help context for the view. The following default help context constants are defined:
Constant Value Meaning hcNoContext 0 No context specified hcDragging 1 Object is being dragged The default value of helpCtx is hcNoContext. getHelpCtx() returns hcDragging whenever the view is being dragged (as indicated by the sfDragging state flag). TVision reserves help context values 0 through 999 for its own use. Programmers may define their own constants in the range 1,000 to 65,535. |
|
|
Undocumented. Reimplemented in TBackground, TDeskTop, TColorSelector, TMonoSelector, TColorDisplay, TColorGroupList, TColorItemList, TColorDialog, TDialog, TInputLine, TButton, TCluster, TRadioButtons, TCheckBoxes, TMultiCheckBoxes, TListBox, TStaticText, TParamText, TLabel, THistory, TIndicator, TEditor, TMemo, TFileEditor, TEditWindow, TMenuView, TMenuBar, TMenuBox, TMenuPopup, TStatusLine, TOutlineViewer, TOutline, TFileInputLine, TSortedListBox, TFileList, TFileInfoPane, TFileDialog, TDirListBox, TChDirDialog, TFrame, TScrollBar, TScroller, TListViewer, TGroup, and TWindow. |
|
|
Pointer to next peer view in Z-order. If this is the last subview, next points to owner's first subview. |
|
|
The options word flags determine various behaviors of the view. The following mnemonics are used to refer to the bit positions of the options data member. Setting a bit position to 1 indicates that the view has that particular attribute; clearing the bit position means that the attribute is off or disabled.
Constant Value Meaning ofSelectable 0x0001 Set if the view should select itself automatically (see sfSelected); for example, by a mouse click in the view, or a Tab in a dialog box. ofTopSelect 0x0002 Set if the view should move in front of all other peer views when selected. When the ofTopSelect bit is set, a call to select() corresponds to a call to makeFirst(). TWindow and descendants by default have the ofTopSelect bit set, which causes them to move in front of all other windows on the desktop when selected. ofFirstClick 0x0004 If clear, a mouse click that selects a view will have no further effect. If set, such a mouse click is processed as a normal mouse click after selecting the view. Has no effect unless ofSelectable is also set. See also handleEvent(), sfSelected and ofSelectable. ofFramed 0x0008 Set if the view should have a frame drawn around it. A TWindow and any class derived from TWindow, has a TFrame as its last subview. When drawing itself, the TFrame will also draw a frame around any other subviews that have the ofFramed bit set. ofPreProcess 0x0010 Set if the view should receive focused events before they are sent to the focused view. Otherwise clear. See also sfFocused, ofPostProcess, and TGroup::phase. ofPostProcess 0x0020 Set if the view should receive focused events whenever the focused view fails to handle them. Otherwise clear. See also sfFocused, ofPreProcess and TGroup::phase. ofBuffered 0x0040 Used for TGroup objects and classes derived from TGroup only. Set if a cache buffer should be allocated if sufficient memory is available. The group buffer holds a screen image of the whole group so that group redraws can be speeded up. In the absence of a buffer, TGroup::draw() calls on each subview's drawView() method. If subsequent memory allocation calls fail, group buffers will be deallocated to make memory available. ofTileable 0x0080 Set if the desktop can tile (or cascade) this view. Usually used only with TWindow objects. ofCenterX 0x0100 Set if the view should be centered on the x-axis of its owner when inserted in a group using TGroup::insert(). ofCenterY 0x0200 Set if the view should be centered on the y-axis of its owner when inserted in a group using TGroup::insert(). ofCentered 0x0300 Set if the view should be centered on both axes of its owner when inserted in a group using TGroup::insert(). |
|
|
The (x, y) coordinates, relative to the owner's origin, of the top-left corner of the view. |
|
|
Points to the TGroup object that owns this view. If 0, the view has no owner. The view is displayed within its owner's view and will be clipped by the owner's bounding rectangle. |
|
|
Used to indicate whether indicators should be placed around focused controls. TProgram::initScreen() sets showMarkers to True if the video mode is monochrome; otherwise it is False. The value may, however, be set on in color and black and white modes if desired. |
|
|
The size of the view. |
|
|
The state of the view is represented by bits set or clear in the state data member. The bits are represented mnemonically by constants as follows.
Constant Value Meaning sfVisible 0x001 Set if the view is visible on its owner. Views are by default sfVisible. Use show() and hide() to modify sfVisible. An sfVisible view is not necessarily visible on the screen, since its owner might not be visible. To test for visibility on the screen, examine the sfExposed bit or call exposed(). sfCursorVis 0x002 Set if a view's cursor is visible. Clear is the default. You can use showCursor() and hideCursor() to modify sfCursorVis. sfCursorIns 0x004 Set if the view's cursor is a solid block; clear if the view's cursor is an underline (the default). Use blockCursor() and normalCursor() to modify this bit. sfShadow 0x008 Set if the view has a shadow. sfActive 0x010 Set if the view is the active window or a subview in the active window. sfSelected 0x020 Set if the view is the currently selected subview within its owner. Each TGroup object has a TGroup::current data member that points to the currently selected subview (or is 0 if no subview is selected). There can be only one currently selected subview in a TGroup. sfFocused 0x040 Set if the view is focused. A view is focused if it is selected and all owners above it are also selected. The last view on the focused chain is the final target of all focused events. sfDragging 0x080 Set if the view is being dragged. sfDisabled 0x100 Set if the view is disabled. A disabled view will ignore all events sent to it. sfModal 0x200 Set if the view is modal. There is always exactly one modal view in a running TVision application, usually a TApplication or TDialog object. When a view starts executing (through an TGroup::execView() call), that view becomes modal. The modal view represents the apex (root) of the active event tree, getting and handling events until its endModal() method is called. During this "local" event loop, events are passed down to lower subviews in the view tree. Events from these lower views pass back up the tree, but go no further than the modal view. See also setState(), handleEvent() and TGroup::execView(). sfDefault 0x400 This is a spare flag, available to specify some user-defined default state. sfExposed 0x800 Set if the view is owned directly or indirectly by the application object, and therefore possibly visible on the. exposed() uses this flag in combination with further clipping calculations to determine whether any part of the view is actually visible on the screen. Many TView member functions test and/or alter the state data member by calling getState() and/or setState(). |
1.2.8.1 written by Dimitri van Heesch,
© 1997-2001
